20/20 Imaging X-Ray Machines

Explore our line of 20/20 Imaging Equipment Products below. For more detailed product information or for a quick quote, contact our team.



Request Quote

Veterinary Industry | 20/20 Imaging

20/20 Imaging Momentum-EQ

Lightweight, Portable, All-In-One DR-EQ Solution

More Details

Lightweight, Portable, All-In-One DR-EQ Solution

  • The Lightest at Under 18 lbs Custom holders and design is only available on MO-EQCustom Tablet Enclosure
  • Built-in Positioner
  • All in one Charging Charge Everything with one power cable
  • Ergonomic Custom panel and Tablet holders
  • Accommodates all size hands for easy handling
  • Rugged
  • Lightweight Aluminum durable design
  • Scratch-Resistant Finish
Request a Quote
Podiatry Industry | 20/20 Imaging

20/20 Imaging SR-130 Mobile X-Ray Unit

Agile lightweight portability - Hospital quality imaging performed anywhere.

More Details

Features & Specifications

  • High-frequency inverter
  • Agile lightweight portability
  • Hospital quality imaging performed anywhere
  • KVP range: 40-100
  • MA range: 15 & 30 operator selectable
  • MAS range: 0.15 - 120
  • Stationary anode, 15° target, 1.0 fs 30,000 heat unit storage
  • SID: 13" - 78" (from floor)
  • 200° rotation collimator - high output lamp
  • Weight: 100 lbs. / 45 kg
Request a Quote
Veterinary Industry | 20/20 Imaging

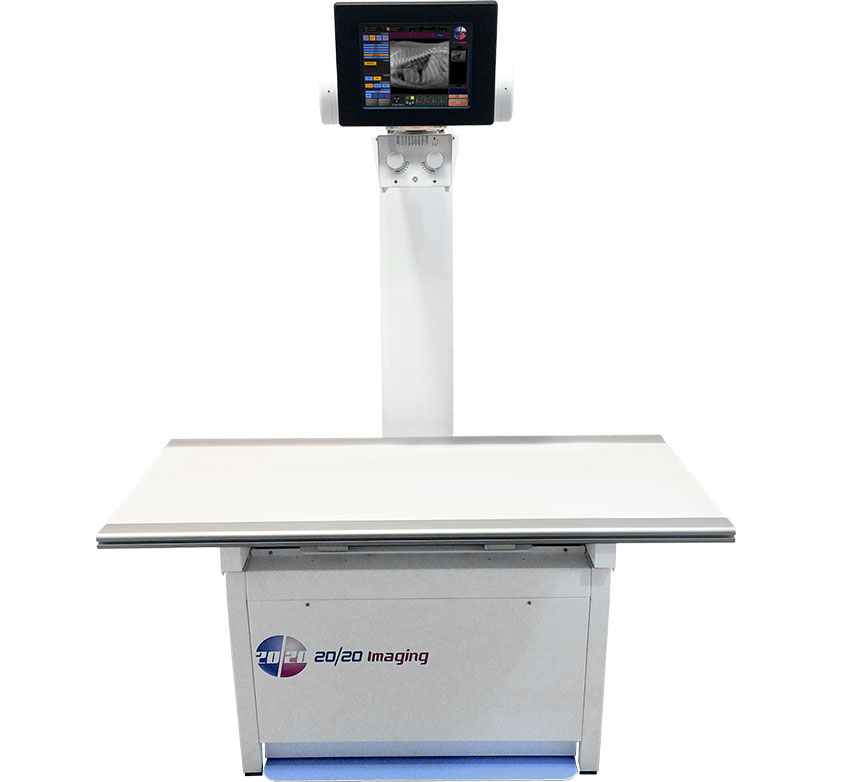

20/20 Imaging VXR X-Ray Unit

High-Frequency Veterinary Specific X-Ray System With TouchScreen Interface

More Details
  • Acquisition touch-screen interface built in
  • Hi Frequency Generator
  • 32 kW, 400 mA, 125 kVp, 500 mAs
Request a Quote
Chiropractic Industry | 20/20 Imaging

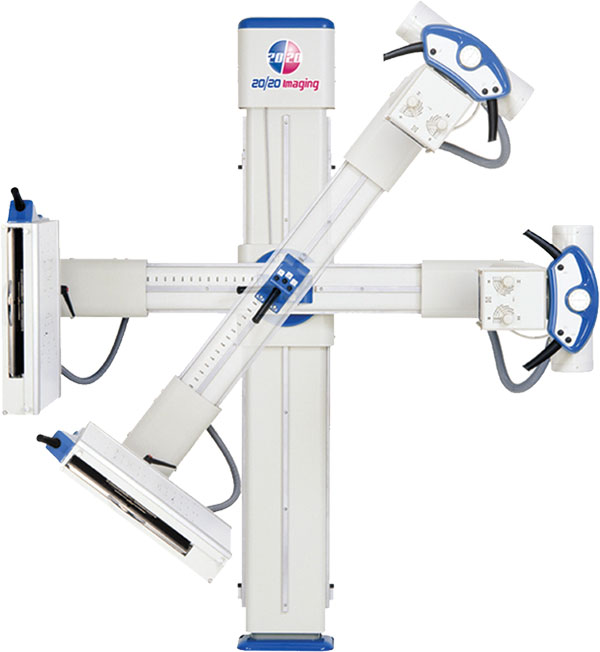

20/20 Imaging C-SA X-Ray Unit

Complete Chiropractic Straight-Arm X-Ray System

More Details
  • Motorized Variable SID
  • Floor Mount 8’ Foot 9” ceiling
  • H.T. Cables
  • Manual Collimator
  • X-Ray Generator: SHF415 40KW, single phase 208 volt
  • X-Ray Tube: E7884X 150Kvp 300,000 HU 0.6-1.2mm FS
Request a Quote
Podiatry Industry | 20/20 Imaging

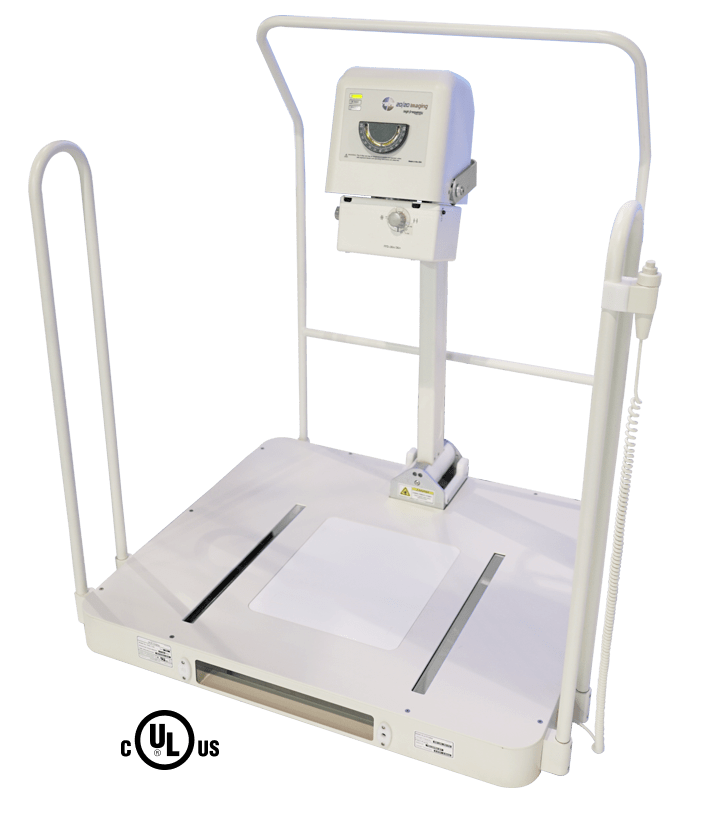

20/20 Imaging HF PXS-710 X-RAY

The PXS-710 was designed for superior imaging performance and convenient patient positioning for the Podiatry professional, as well as for Orthopedic Foot and Ankle Radiographic applications.

More Details

The PXS-710 incorporates a high-frequency generator to provide maximum mR/mAs, and has a microprocessor output of 70kV at 10mA. With its 0.5mm focal spot x-ray tube, and high output generator, the model PXS-710 provides exceptional image resolution and faster exposure times for foot and ankle radiography.

This x-ray unit can be used with conventional film screen technology*, or as a part of a complete Podiatry CR/DR-system. *Upgrade later to a 2020 CR or DR system!

Request a Quote
Chiropractic Industry | 20/20 Imaging

20/20 Imaging Digital Retro-Fit DR Solutions

Wireless, Fixed, & Hybrid DR

More Details
digital retro fit dr solution

Momentum Wireless Panel (Cesium Flatpanel)
#1 Composite User Satisfaction Score of the MD-Buyline Customer Satisfaction Survey, the 14x17 wireless Flat Panel detector is lightweight and easy to maneuver and is a true cassette sized hospital-grade 16-bit DR Panel with a Cesium scintillator providing the highest image quality possible.

hybrid flat panel

C-FPH Hybrid Panel (Hybrid Flatpanel, Cesium)
Enjoy 3 unique operating configurations with the 17x17 hybrid, including full wireless, wired power connection, and wired (fixed) power and data connections. Providing the most in versatility with exceptional image quality, and paired with advanced software features and functionality.

tethered flat panel

C-FP Tethered Panel (Flatpanel, Cesium)
The versatile Flat Panel DR system offers images within seconds of exposure and fits easily into smaller x-ray rooms. The 17x17 inch panel produces high-quality images and is configurable on multiple chiropractic stands. FP offers true flat panel technology.

wireless panel

C-FPW Wireless Panel (Wireless Flatpanel, Cesium)
All new wireless connectivity. Eliminate the need for a static wired connection & the need to run extra cabling. The 14x17 inch panel produces high-quality images wirelessly.

24/7 emergency Service

Fast, Friendly, and Knowledgeable Responses to Your Service Needs

Why Choose Centura Imaging?


Service Expertise

Service Department consisting of experienced personnel factory-trained in several manufactures' equipment. Our service staff of engineers comes from varied OEM backgrounds.


Custom Contracts

Customized Preventative Maintenance contracts tailored to your specific needs. Our team has a combined service experience of over 50 years on almost all makes and models.


Parts Service

We have a large source of parts suppliers including OEM, refurbished, used and secondary manufactures. This allows us to supply parts at the best prices and fastest availability to keep your system running optimally.


Quick Response

Many service issues are resolved within one hour over the phone or with our state of the art remote login service. When on-site service is required an engineer typically will arrive the same day. We have trained engineers on call and available 24/7.
